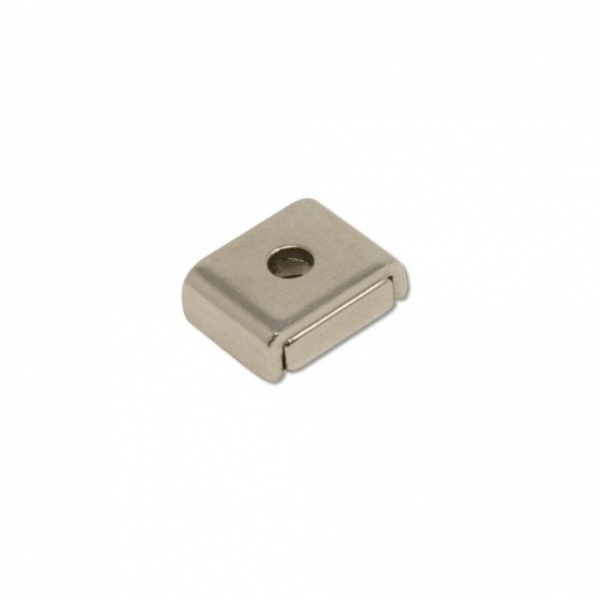

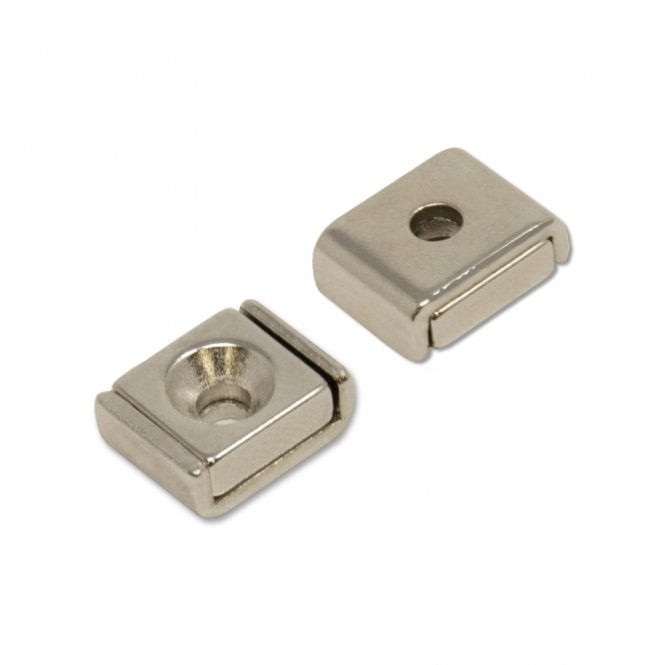

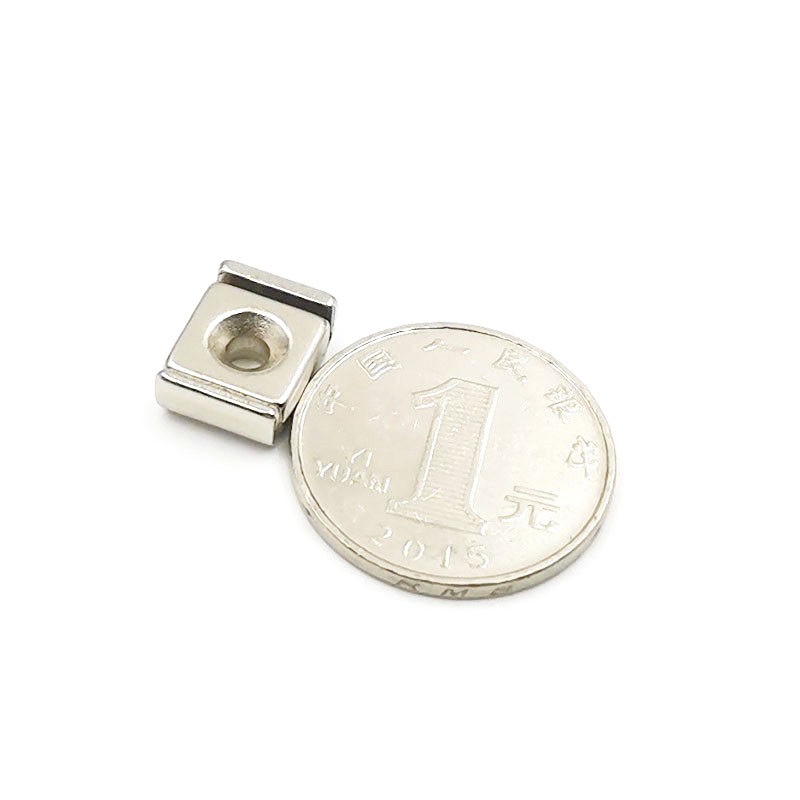

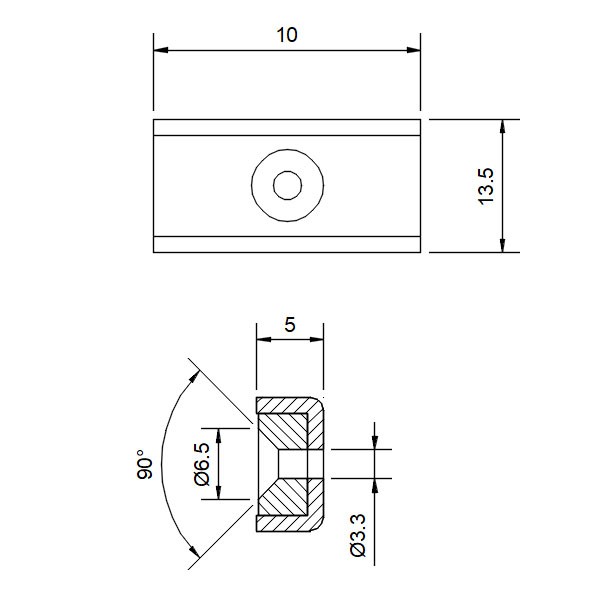

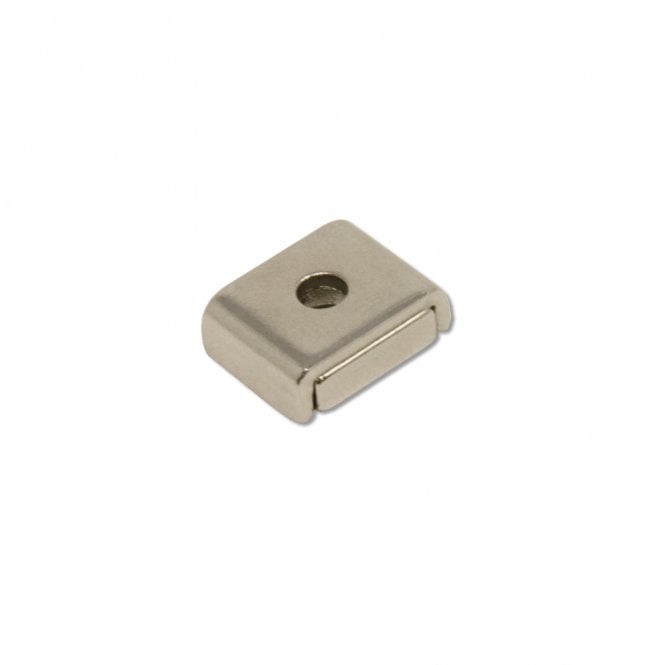

10 x 13.5 x 5 mm channel magnet with a countersunk holes (w/ 3.3mm c/sunk hole), magnet made of neodymium, pot made of steel, strength approx. 4 kgs
Length:
| Item Code | Length x Width x Thickness | Borehole | Countersinking | Distance between centres | Power kgs |
|---|---|---|---|---|---|
| CUP-K10 | 10 x 13.5 x 5 | 3.3 | 6.5 | / | 4 |
| CUP-K15 | 15 x 13.5 x 5 | 3.3 | 6.5 | / | 7 |
| CUP-K20 | 20 x 13.5 x 5 | 3.3 | 6.5 | / | 8 |
| CUP-K30 | 30 x 13.5 x 5 | 3.3 | 6.5 | / | 16 |
| CUP-K40 | 40 x 13.5 x 5 | 3.3 | 6.5 | 30 | 17 |
| CUP-K50 | 50 x 13.5 x 5 | 3.3 | 6.5 | 40 | 27 |
| CUP-K60 | 60 x 13.5 x 5 | 3.3 | 6.5 | 50 | 30 |
| CUP-K80 | 80 x 13.5 x 5 | 3.3 | 6.5 | 70 | 33 |
| CUP-K100 | 100 x 13.5 x 5 | 3.3 | 6.5 | 90 | 36 |
| CUP-K120 | 120 x 13.5 x 5 | 3.3 | 6.5 | 110 | 40 |
| Item Code | Length x Width x Thickness | Borehole | Countersinking | Distance between centres | Power kgs |
