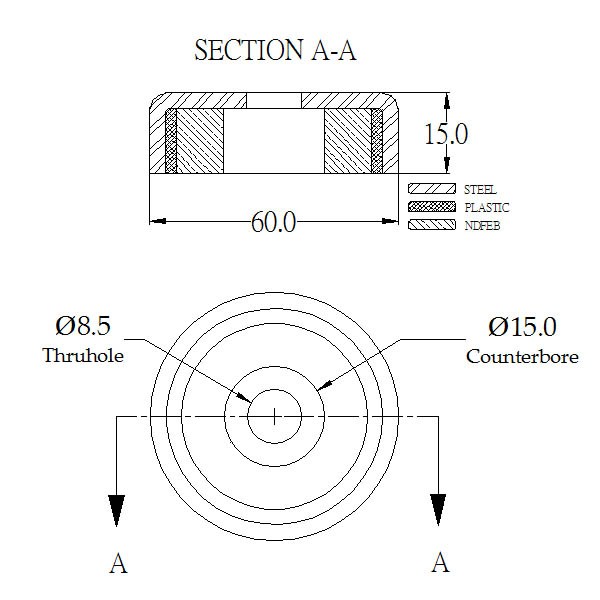

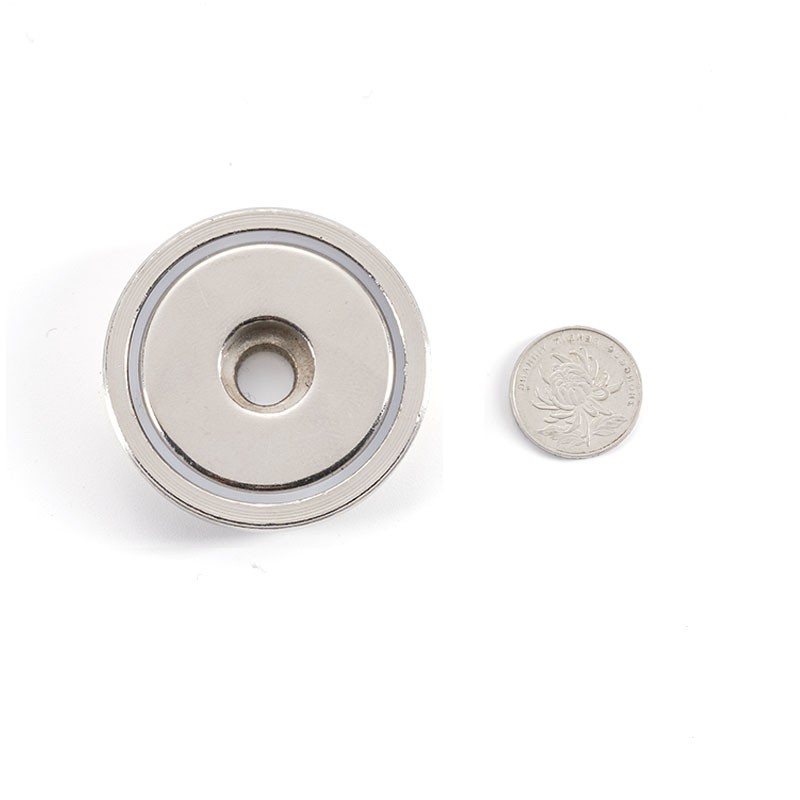

Pot magnet with counterbore borehole, ø = 60 mm, height 15 mm, borehole 8.5/15 mm, magnet made of neodymium, pot made of steel, strength approx. 95 kgs.
Outer diameter:
The counter-bored hole pot magnet is available with countersinks and threaded studs. The neodymium ring magnet sunken into a steel shell and protect the magnet, the most important is the steel shell enhance several times power of the magnets. This ring base neodymium magnet has approx. 95 kg (approx. 209.437 lbs) holding power. The counterbored hole (8.5mm) is for M8 screw.
| Item ID | CUP-B60 |
| Material | NdFeB |
| Pot diameter (D) | 60 mm |
| Pot total height (H) | 15 mm |
| Borehole (d1) | 8.5 mm (Sized for M8 screw) |
| Borehole (d2) | 15 mm (Straight counterbored hole) |
| Thread M | M8 Screw |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 95kg ( approx. 931 N） |
| Max. working temperature | 80°C |
| Net Weight | 235 g |
| Item ID | CUP-B60 |
| Material | NdFeB |
| Pot diameter (D) | 2.362 " |
| Pot total height (H) | 0.591 " |
| Borehole (d1) | 0.335 " (Sized for M8 screw) |
| Borehole (d2) | 0.591 " (Straight counterbored hole) |
| Thread M | M8 Screw |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 209.437 lbs ( approx. 931 N） |
| Max. working temperature | 80°C |
| Net Weight | 8.289 oz |
| Item Code | D | H | Borehole (d1) | Borehole (d2) | Power kgs |
|---|---|---|---|---|---|
| CUP-B16 | 16 | 5.2 | 3.5 | 6.5 | 4 |
| CUP-B20 | 20 | 7.2 | 4.5 | 8 | 6 |
| CUP-B25 | 25 | 7.7 | 5.5 | 9 | 14 |
| CUP-B32 | 32 | 7.8 | 5.5 | 9 | 23 |
| CUP-B36 | 36 | 7.6 | 6.5 | 11 | 29 |
| CUP-B42 | 42 | 8.8 | 6.5 | 11 | 32 |
| CUP-B48 | 48 | 10.8 | 8.5 | 15 | 63 |
| CUP-B60 | 60 | 15 | 8.5 | 15 | 95 |
| CUP-B75 | 75 | 17.8 | 10.5 | 18 | 155 |
