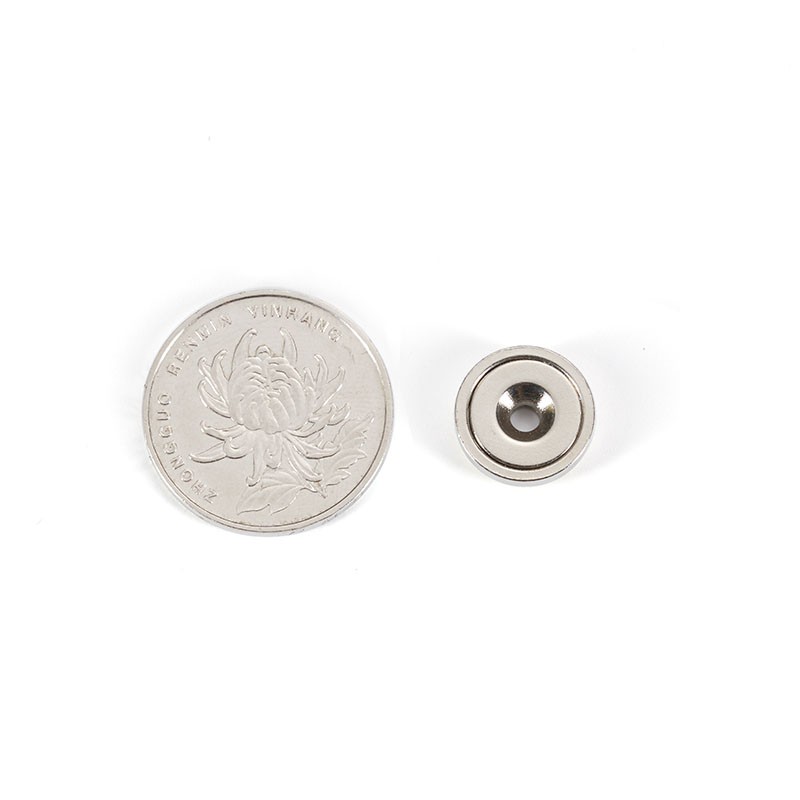

Pot magnet with countersunk borehole, ø = 12 mm, height 5 mm, borehole 3/5.5 mm, angle 90°, magnet made of neodymium, pot made of steel, strength approx. 1.8 kgs.
Outer diameter:
Powerful Neodymium round base cup magnet (12mm diameter × 5mm height) is made of a super strong neodymium magnet encased inside of a Nickel (Ni) plated steel cup and countersunk for a 3mm diameter countersunk screws.
This strong magnet is coated in a Nickel (Ni) coating that offers exceptional corrosion resistance when used in wet or humid environments. The neodymium magnet is bonded inside of the cup with adhesives. This design forms a magnetic circuit which triples the holding force to 1.8kg (approx. 3.968 lbs)!
| Item ID | CUP-A12 |
| Material | NdFeB |

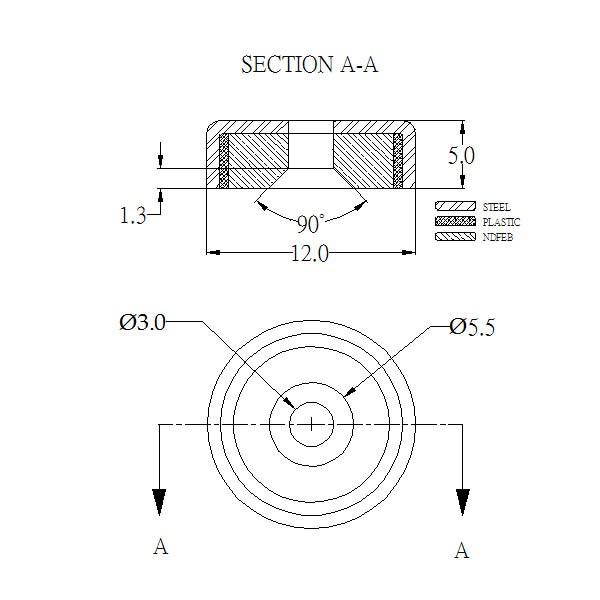

| Pot diameter (D) | 12 mm |
| Pot total height (H) | 5 mm |
| Borehole (d1) | 3 mm (Sized for M2.5 screw) |
| Countersinking (d2) | 5.5 mm (Tapered countersunk hole) |
| Countersinking (t) | 1.3 mm |
| Thread M | M2.5 Screw |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 1.8kg ( approx. 17.64 N） |
| Max. working temperature | 80°C |
| Net Weight | 4 g |
| Item ID | CUP-A12 |
| Material | NdFeB |
| Pot diameter (D) | 0.472 " |
| Pot total height (H) | 0.197 " |
| Borehole (d1) | 0.118 " (Sized for M2.5 screw) |
| Countersinking (d2) | 0.217 " (Tapered countersunk hole) |
| Countersinking (t) | 0.051 " |
| Thread M | M2.5 Screw |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 3.968 lbs ( approx. 17.64 N） |
| Max. working temperature | 80°C |
| Net Weight | 0.141 oz |
| Item Code | D | H | Borehole (d1) | Countersinking (d2) | Power kgs |
|---|---|---|---|---|---|
| CUP-A16 | 16 | 5.2 | 3.5 | 6.5 | 5 |
| CUP-A20 | 20 | 7.2 | 4.5 | 8.6 | 6 |
| CUP-A25 | 25 | 7.7 | 5.5 | 10.4 | 14 |
| CUP-A32 | 32 | 7.8 | 5.5 | 10.4 | 25 |
| CUP-A36 | 36 | 7.6 | 6.5 | 12 | 29 |
| CUP-A42 | 42 | 8.8 | 6.5 | 12 | 37 |
| CUP-A48 | 48 | 10.8 | 8.5 | 16 | 68 |
| CUP-A60 | 60 | 15 | 8.5 | 16 | 112 |
| CUP-A75 | 75 | 17.8 | 10.5 | 19 | 162 |
| CUP-A10 | 10 | 5 | 3 | 4.8 | 1.2 |
| CUP-A12 | 12 | 5 | 3 | 5.5 | 1.8 |
| Item Code | D | H | Borehole (d1) | Countersinking (d2) | Power kgs |
