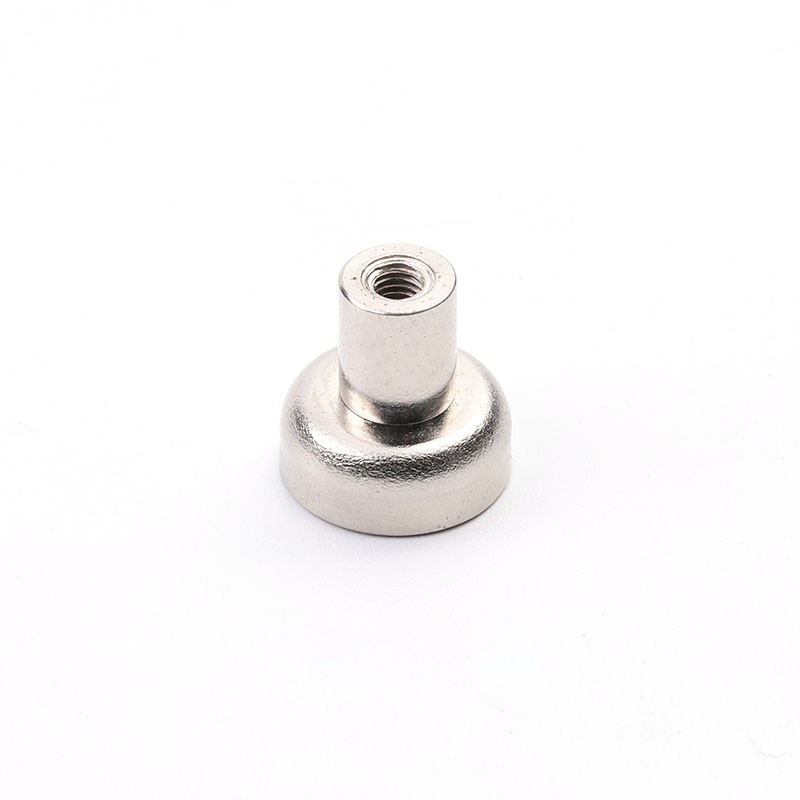

Pot magnet with screw socket, ø = 12 mm, height 12 mm, with screw top (M3), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 3.2 kgs.
Outer diameter:
The female thread stud of neodymium cup magnet is made of strong permanent magnet, it’s the most powerful magnet mounted into Nickel coating steel cup, the cup increase approx 5 times power of magnet and resistant magnet to chipping or cracking. This disc base neodymium magnet has approx. 3.2 kg (approx. 7.055 lbs) holding power. The threaded Female Stud is for M3 screw.
The round base magnets are also known as magnetic cup holders or magnetic cup assembly.

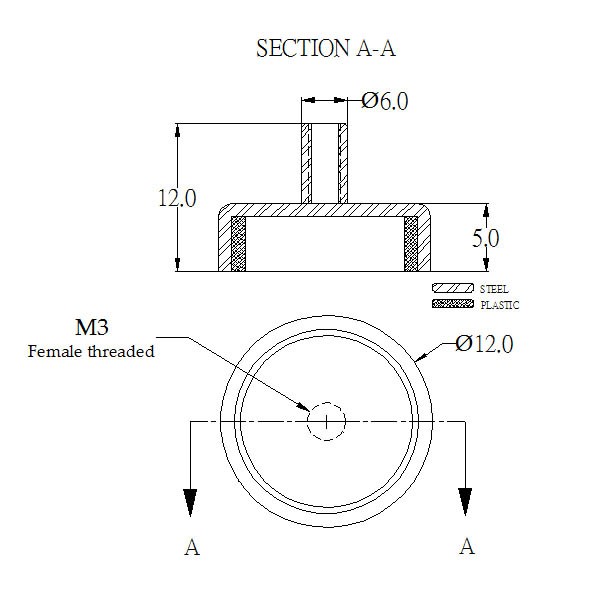

| Item ID | CUP-D12 |
| Material | NdFeB |
| Pot diameter (D) | 12 mm |
| Total height (H2) | 12 mm |
| Neck diameter (d) | 6 mm |
| Pot height (H1) | 5 mm |
| Thread M | M3 Female threaded stud |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 3.2kg ( approx. 31.36 N） |
| Max. working temperature | 80°C |
| Net Weight | 6 g |
| Item ID | CUP-D12 |
| Material | NdFeB |
| Pot diameter (D) | 0.472 " |
| Total height (H2) | 0.472 " |
| Neck diameter (d) | 0.236 " |
| Pot height (H1) | 0.197 " |
| Thread M | M3 Female threaded stud |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 7.055 lbs ( approx. 31.36 N） |
| Max. working temperature | 80°C |
| Net Weight | 0.212 oz |
| Item Code | Dia x Height | Thread | Power kgs |
|---|---|---|---|
| CUP-D10 | 10 x 5 mm | M3 x 7 | 2.2 |
| CUP-D12 | 12 x 5 mm | M3 x 7 | 3.2 |
| CUP-D16 | 16 x 5.2 mm | M4 x 8.3 | 5.5 |
| CUP-D20 | 20 x 7.2 mm | M4 x 7.8 | 9 |
| CUP-D25 | 25 x 7.7 mm | M5 x 9.3 | 22 |
| CUP-D32 | 32 x 7.8 mm | M6 x 10.2 | 34 |
| CUP-D36 | 36 x 7.6 mm | M6 x 10.9 | 41 |
| CUP-D42 | 42 x 8.8 mm | M6 x 10 | 68 |
| CUP-D48 | 48 x 10.8 mm | M8 x 13.2 | 81 |
| CUP-D60 | 60 x 15 mm | M8 x 13 | 113 |
| CUP-D75 | 75 x 17.8 mm | M10 x 17.2 | 164 |
| Item Code | Dia x Height | Thread | Power kgs |
