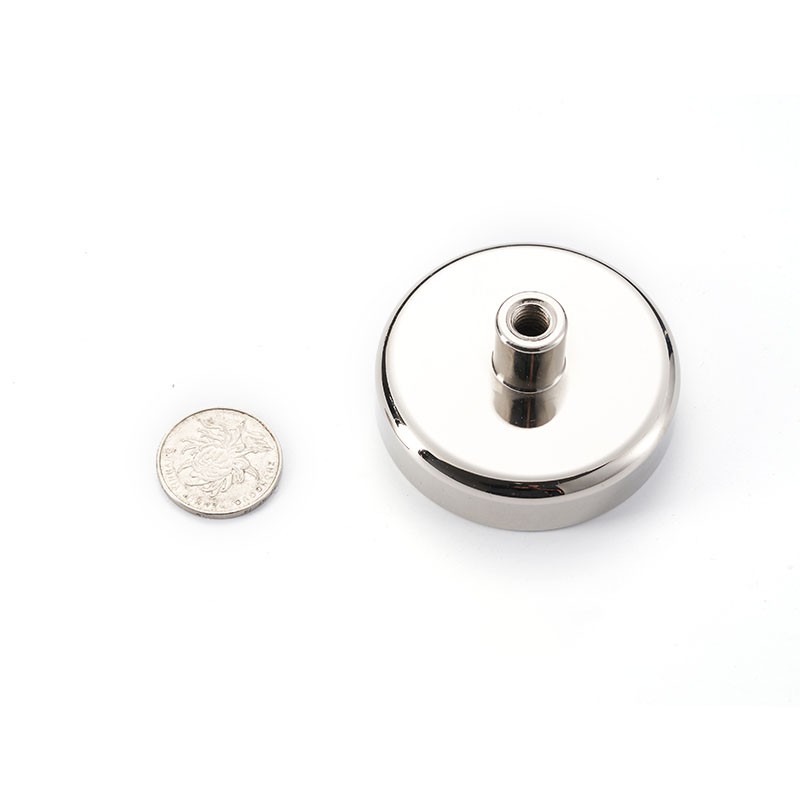

Pot magnet with screw socket, ø = 60 mm, height 28 mm, with screw top (M8), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 113 kgs.
Outer diameter:
The female thread stud of neodymium cup magnet is made of strong permanent magnet, it’s the most powerful magnet mounted into Nickel coating steel cup, the cup increase approx 5 times power of magnet and resistant magnet to chipping or cracking. This disc base neodymium magnet has approx. 113 kg (approx. 249.12 lbs) holding power. The threaded Female Stud is for M8 screw.
The round base magnets are also known as magnetic cup holders or magnetic cup assembly.

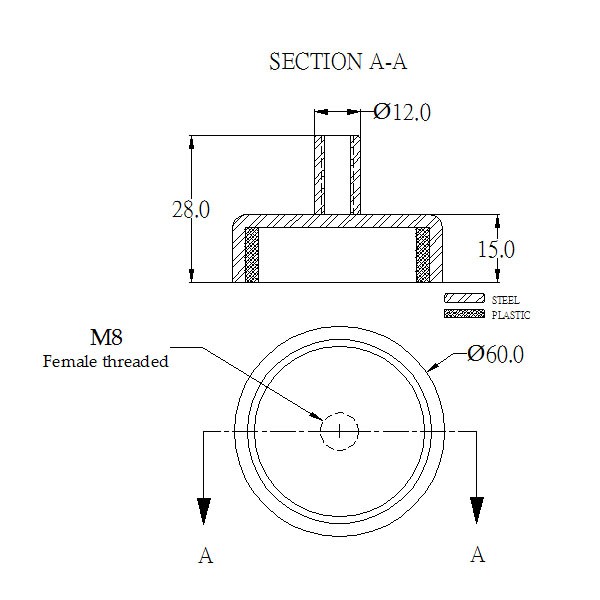

| Item ID | CUP-D60 |
| Material | NdFeB |
| Pot diameter (D) | 60 mm |
| Total height (H2) | 28 mm |
| Neck diameter (d) | 12 mm |
| Pot height (H1) | 15 mm |
| Thread M | M8 Female threaded stud |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 113kg ( approx. 1107.4 N） |
| Max. working temperature | 80°C |
| Net Weight | 263 g |
| Item ID | CUP-D60 |
| Material | NdFeB |
| Pot diameter (D) | 2.362 " |
| Total height (H2) | 1.102 " |
| Neck diameter (d) | 0.472 " |
| Pot height (H1) | 0.591 " |
| Thread M | M8 Female threaded stud |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 249.12 lbs ( approx. 1107.4 N） |
| Max. working temperature | 80°C |
| Net Weight | 9.277 oz |
| Item Code | Dia x Height | Thread | Power kgs |
|---|---|---|---|
| CUP-D10 | 10 x 5 mm | M3 x 7 | 2.2 |
| CUP-D12 | 12 x 5 mm | M3 x 7 | 3.2 |
| CUP-D16 | 16 x 5.2 mm | M4 x 8.3 | 5.5 |
| CUP-D20 | 20 x 7.2 mm | M4 x 7.8 | 9 |
| CUP-D25 | 25 x 7.7 mm | M5 x 9.3 | 22 |
| CUP-D32 | 32 x 7.8 mm | M6 x 10.2 | 34 |
| CUP-D36 | 36 x 7.6 mm | M6 x 10.9 | 41 |
| CUP-D42 | 42 x 8.8 mm | M6 x 10 | 68 |
| CUP-D48 | 48 x 10.8 mm | M8 x 13.2 | 81 |
| CUP-D60 | 60 x 15 mm | M8 x 13 | 113 |
| CUP-D75 | 75 x 17.8 mm | M10 x 17.2 | 164 |
| Item Code | Dia x Height | Thread | Power kgs |
