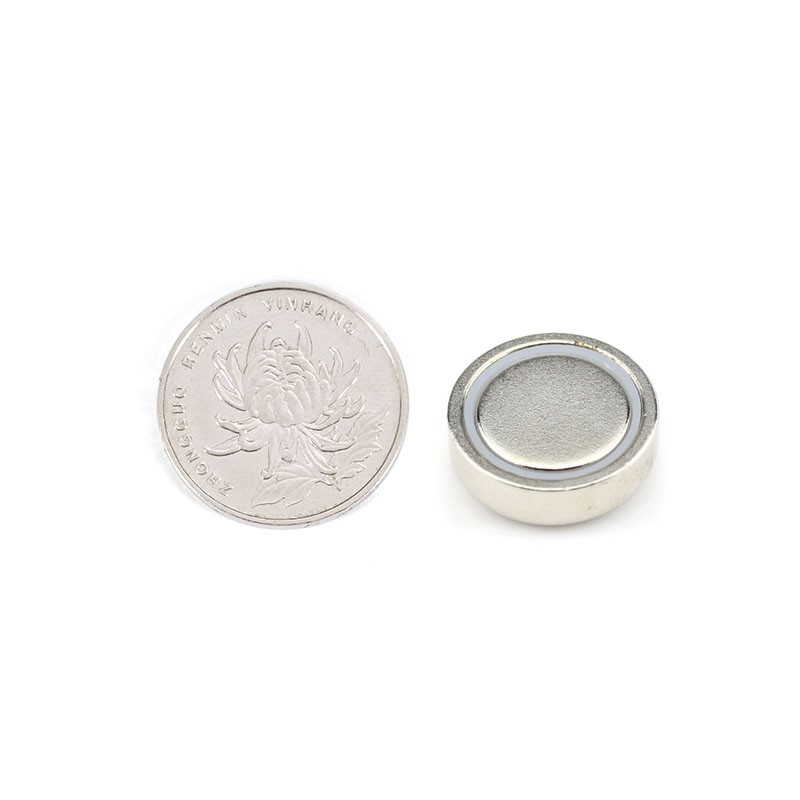

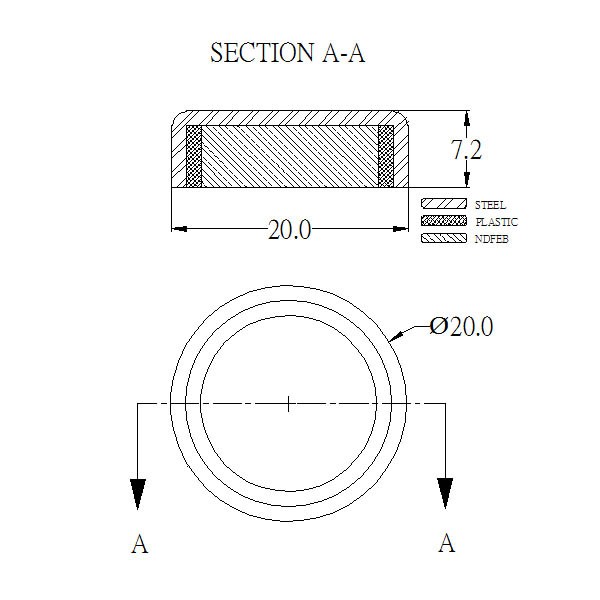

The holding power of this magnetic assembly is about 9 kg (approx. 19.841 lbs) with a direct contact with the steel. The outer diameter of the magnet is 20mm (0.787 " ). The thickness of the cup magnet is 7.2mm (0.283 " ).
The magnetic round base is also known as magnetic cup holders or cup assembly.
| Item ID | CUP-H20 |
| Material | NdFeB |
| Pot diameter (D) | 20 mm |
| Pot total height (H) | 7.2 mm |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 9kg ( approx. 88.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 17 g |
| Item ID | CUP-H20 |
| Material | NdFeB |
| Pot diameter (D) | 0.787 " |
| Pot total height (H) | 0.283 " |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 19.841 lbs ( approx. 88.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 0.6 oz |
| Item Code | D | Total height (H) | Power kgs |
|---|---|---|---|
| CUP-H10 | 10 | 5 | 2.2 |
| CUP-H12 | 12 | 5 | 3.2 |
| CUP-H16 | 16 | 5.2 | 5.5 |
| CUP-H20 | 20 | 7.2 | 9 |
| CUP-H25 | 25 | 7.7 | 22 |
| CUP-H32 | 32 | 7.8 | 34 |
| CUP-H36 | 36 | 7.6 | 41 |
| CUP-H42 | 42 | 8.8 | 68 |
| CUP-H48 | 48 | 10.8 | 81 |
| CUP-H60 | 60 | 15 | 113 |
| CUP-H75 | 75 | 17.8 | 164 |
| Item Code | D | Total height (H) | Power kgs |
