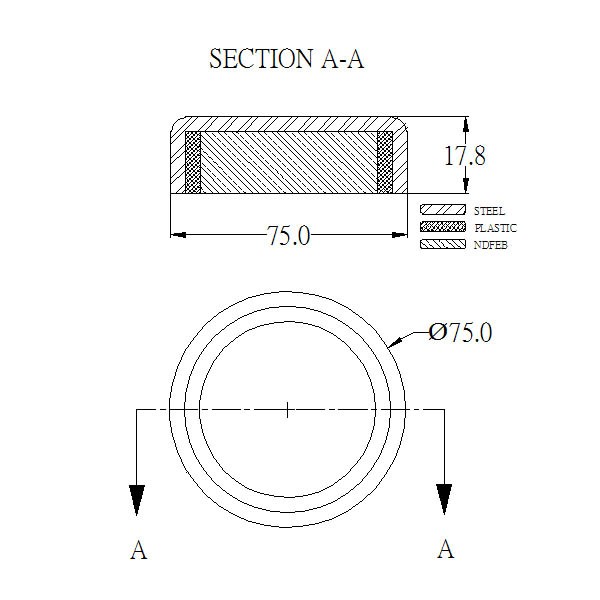

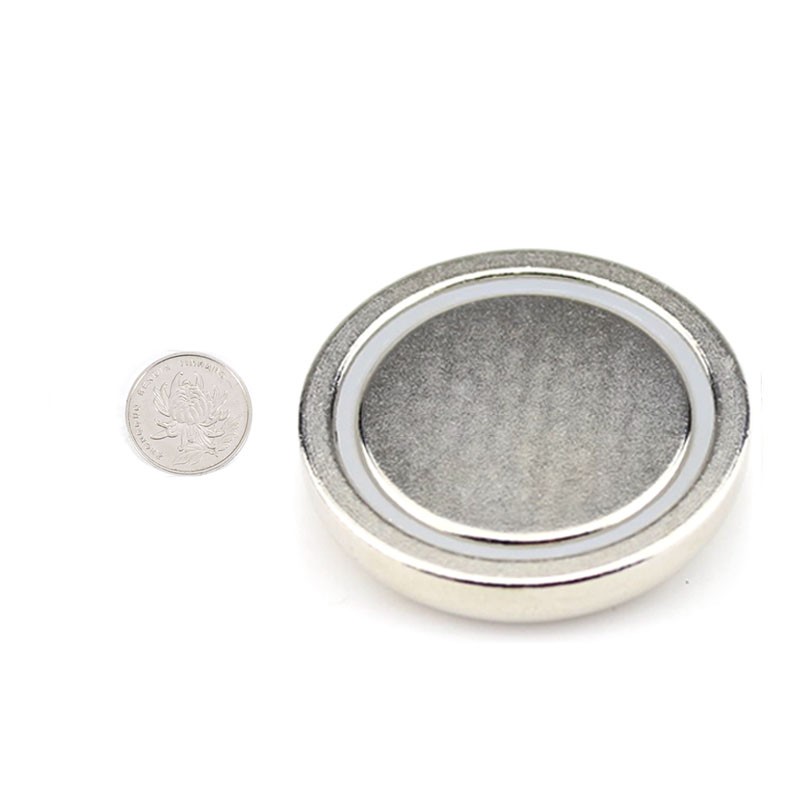

These neodymium cup magnets (diameter 75 mm × height 17.8 mm) are glued into indentations when it's impossible to screw them on. They have a higher adhesive force （It has a pull force of 164 kg (approx. 361.554 lbs) than same-size countersunk pot magnets because the contact surface is larger.
Attention: The magnets themselves are not self-adhesive; a suitable adhesive is linked under accessories.
| Item ID | CUP-H75 |
| Material | NdFeB |
| Pot diameter (D) | 75 mm |
| Pot total height (H) | 17.8 mm |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 164kg ( approx. 1607.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 515 g |
| Item ID | CUP-H75 |
| Material | NdFeB |
| Pot diameter (D) | 2.953 " |
| Pot total height (H) | 0.701 " |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 361.554 lbs ( approx. 1607.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 18.166 oz |
| Item Code | D | Total height (H) | Power kgs |
|---|---|---|---|
| CUP-H10 | 10 | 5 | 2.2 |
| CUP-H12 | 12 | 5 | 3.2 |
| CUP-H16 | 16 | 5.2 | 5.5 |
| CUP-H20 | 20 | 7.2 | 9 |
| CUP-H25 | 25 | 7.7 | 22 |
| CUP-H32 | 32 | 7.8 | 34 |
| CUP-H36 | 36 | 7.6 | 41 |
| CUP-H42 | 42 | 8.8 | 68 |
| CUP-H48 | 48 | 10.8 | 81 |
| CUP-H60 | 60 | 15 | 113 |
| CUP-H75 | 75 | 17.8 | 164 |
| Item Code | D | Total height (H) | Power kgs |
