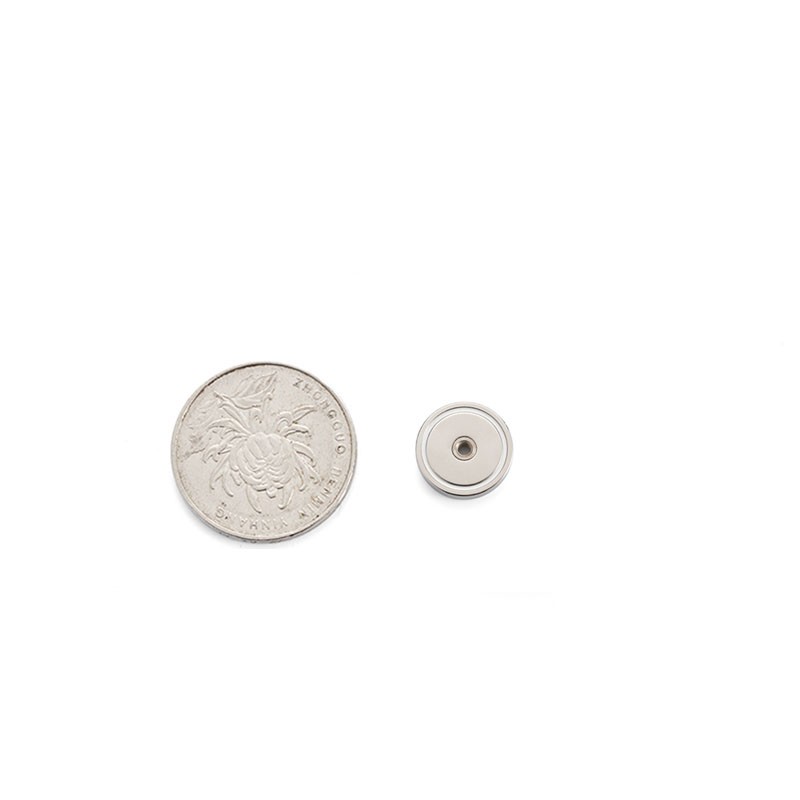

Pot magnet with internal thread, ø = 12 mm, with internal thread (M3), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 3 kgs.
Outer diameter:

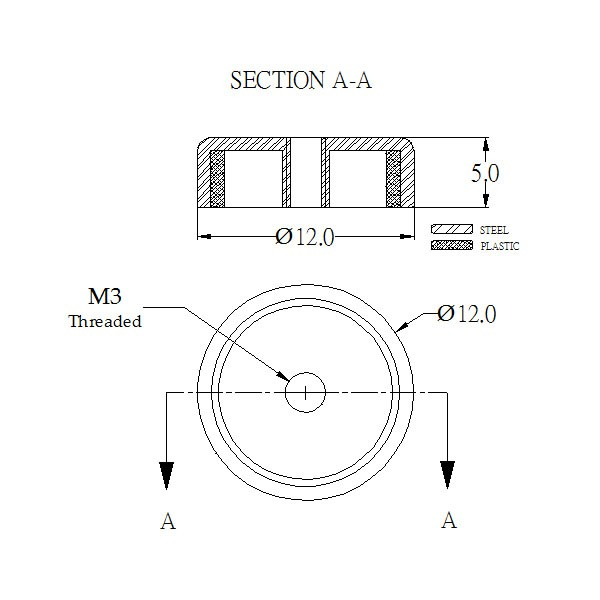

These Neodymium cup magnets (diameter 12 mm × height 5 mm) feature an M3 internal thread that allow them to be screwed together with objects that have a compatible external thread. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. It has a pull force of 3 kg (approx. 6.614 lbs).
| Item ID | CUP-G12 |
| Material | NdFeB |
| Pot diameter (D) | 12 mm |
| Pot total height (H) | 5 mm |
| Thread M | M3 Internal threaded |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 3kg ( approx. 29.4 N） |
| Max. working temperature | 80°C |
| Net Weight | 6 g |
| Item ID | CUP-G12 |
| Material | NdFeB |
| Pot diameter (D) | 0.472 " |
| Pot total height (H) | 0.197 " |
| Thread M | M3 Internal threaded |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 6.614 lbs ( approx. 29.4 N） |
| Max. working temperature | 80°C |
| Net Weight | 0.212 oz |
| Item Code | D | Total height (H) | Thread | Power kgs |
|---|---|---|---|---|
| CUP-G12 | 12 | 5 | M3 | 3 |
| CUP-G16 | 16 | 5.2 | M3 | 4 |
| CUP-G20 | 20 | 7.2 | M4 | 6 |
| CUP-G25 | 25 | 7.7 | M5 | 14 |
| CUP-G32 | 32 | 7.8 | M5 | 23 |
| CUP-G36 | 36 | 7.6 | M6 | 29 |
| CUP-G42 | 42 | 8.8 | M6 | 32 |
| CUP-G48 | 48 | 10.8 | M8 | 63 |
| CUP-G60 | 60 | 15 | M8 | 95 |
| CUP-G75 | 75 | 17.8 | M10 | 155 |
| Item Code | D | Total height (H) | Thread | Power kgs |
