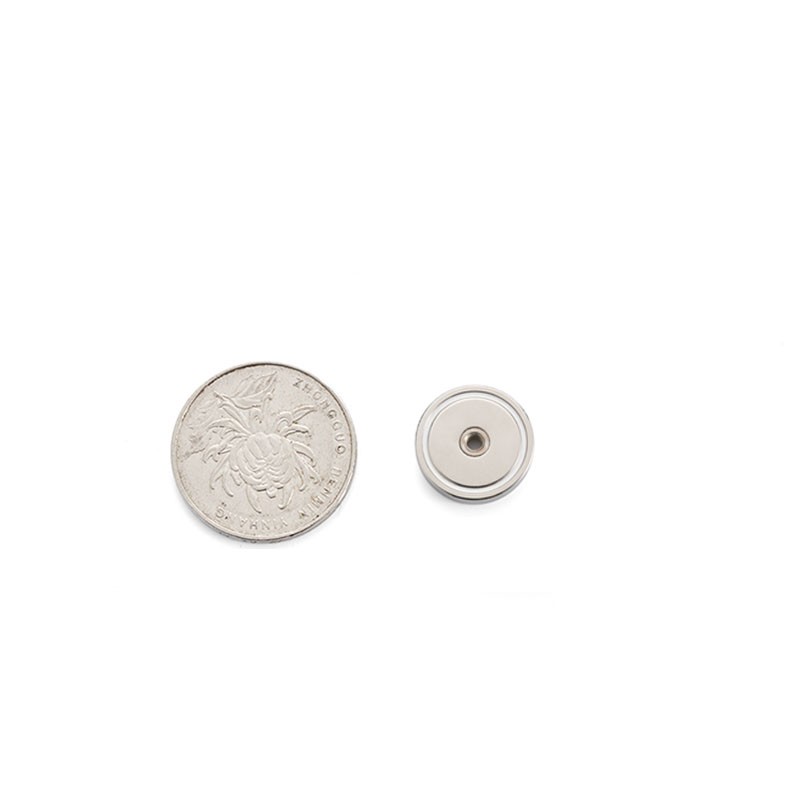

Pot magnet with internal thread, ø = 16 mm, with internal thread (M3), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 4 kgs.
Outer diameter:
16 mm (0.63 ") diameter x 5.2mm ( 0.205 " ) with an M3 internal thread cap magnet / pot magnet. It has a pull force of 4 kg (approx. 8.818 lbs).
In applications in which a strong magnetic hold is required, but the magnet also needs to be easily removed, an eyebolt or screw that’s been threaded into the magnet can simply be tightened to lift the magnet off of the surface. Once the magnet has been slightly separated from the surface it will then be much easier to pull off. This is perfect for applications where the magnet will be used in a tight space and may be difficult to remove otherwise.
| Item ID | CUP-G16 |
| Material | NdFeB |
| Pot diameter (D) | 16 mm |
| Pot total height (H) | 5.2 mm |
| Thread M | M3 Internal threaded |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 4kg ( approx. 39.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 9 g |
| Item ID | CUP-G16 |
| Material | NdFeB |
| Pot diameter (D) | 0.63 " |
| Pot total height (H) | 0.205 " |
| Thread M | M3 Internal threaded |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 8.818 lbs ( approx. 39.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 0.317 oz |
| Item Code | D | Total height (H) | Thread | Power kgs |
|---|---|---|---|---|
| CUP-G12 | 12 | 5 | M3 | 3 |
| CUP-G16 | 16 | 5.2 | M3 | 4 |
| CUP-G20 | 20 | 7.2 | M4 | 6 |
| CUP-G25 | 25 | 7.7 | M5 | 14 |
| CUP-G32 | 32 | 7.8 | M5 | 23 |
| CUP-G36 | 36 | 7.6 | M6 | 29 |
| CUP-G42 | 42 | 8.8 | M6 | 32 |
| CUP-G48 | 48 | 10.8 | M8 | 63 |
| CUP-G60 | 60 | 15 | M8 | 95 |
| CUP-G75 | 75 | 17.8 | M10 | 155 |
| Item Code | D | Total height (H) | Thread | Power kgs |
