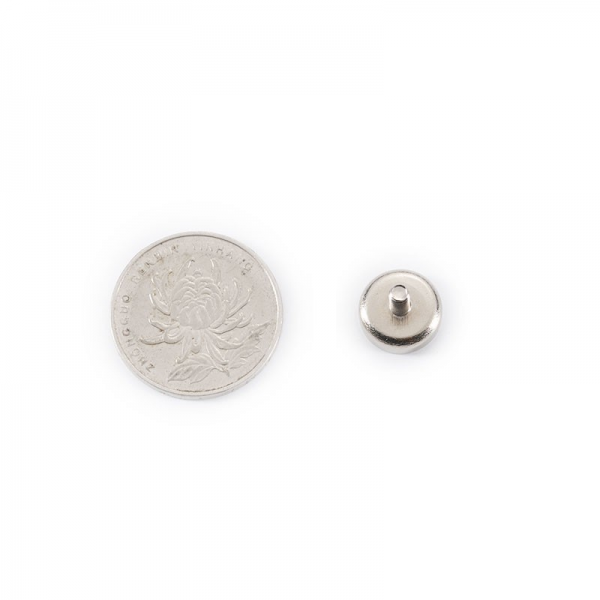

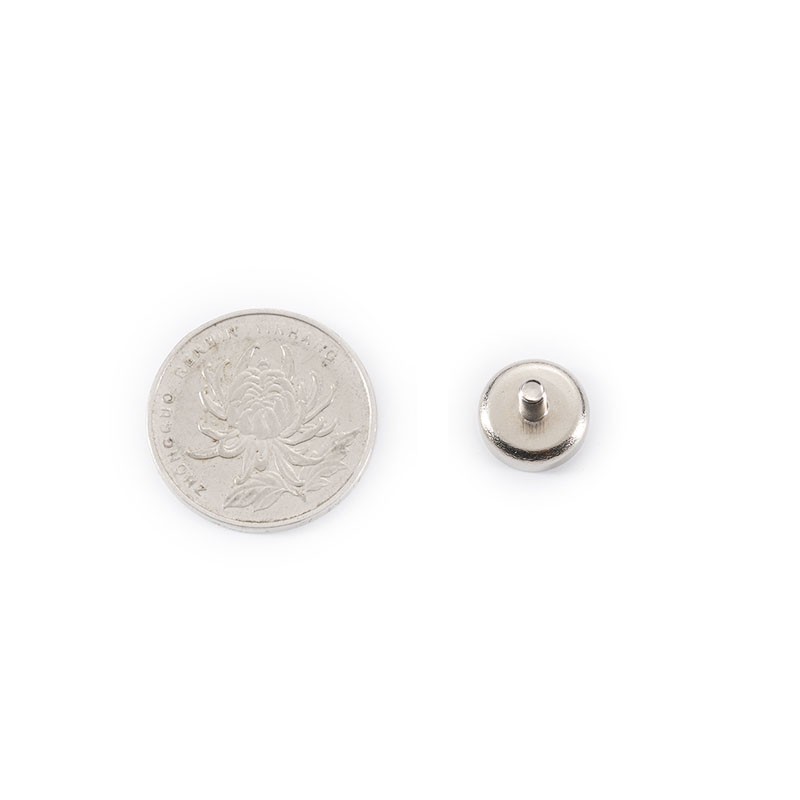

Pot magnet with threaded stem, ø = 10 mm, total height 12 mm, with screw top (M3), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 2.2 kgs.
Outer diameter:

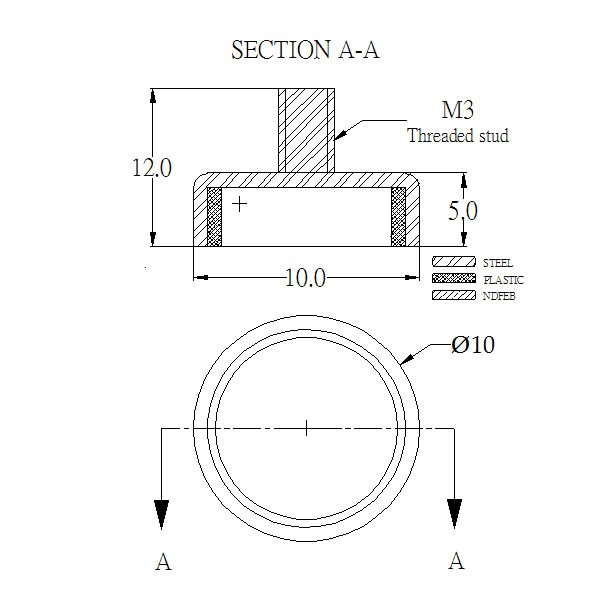

This round base neodymium magnet has approx. 2.2 kg (approx. 4.85 lbs) holding power. The threaded stud is M3. is when the cup directly contacts with the steel. The outer diameter of the magnet is 10 mm (0.394 "). The total thickness of the assembly is 12 mm (0.472 ").
| Item ID | CUP-C10 |
| Material | NdFeB |
| Pot diameter (D) | 10 mm |
| Total height (H2) | 12 mm |
| Pot height (H1) | 5 mm |
| Thread M | M3 Male threaded stud |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 2.2kg ( approx. 21.56 N） |
| Max. working temperature | 80°C |
| Net Weight | 3.5 g |
| Item ID | CUP-C10 |
| Material | NdFeB |
| Pot diameter (D) | 0.394 " |
| Total height (H2) | 0.472 " |
| Pot height (H1) | 0.197 " |
| Thread M | M3 Male threaded stud |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 4.85 lbs ( approx. 21.56 N） |
| Max. working temperature | 80°C |
| Net Weight | 0.123 oz |
| Item Code | Dia. x Height | Thread | Power kgs |
|---|---|---|---|
| CUP-C10 | 10 x 5 | M3 x 7 | 2.2 |
| CUP-C12 | 12 x 5 | M3 x 7 | 3.2 |
| CUP-C16 | 16 x 5.2 | M4 x 8.8 | 5.5 |
| CUP-C20 | 20 x 7.2 | M4 x 8.8 | 9 |
| CUP-C25 | 25 x 7.7 | M5 x 9.3 | 22 |
| CUP-C32 | 32 x 7.8 | M6 x 10.2 | 34 |
| CUP-C36 | 36 x 7.6 | M6 x 10 | 41 |
| CUP-C42 | 42 x 8.8 | M6 x 9.9 | 68 |
| CUP-C48 | 48 x 10.8 | M8 x 13.2 | 81 |
| CUP-C60 | 60 x 15 | M8 x 16.5 | 113 |
| CUP-C75 | 75 x 17.8 | M10 x 17.2 | 164 |
| Item Code | Dia. x Height | Thread | Power kgs |
