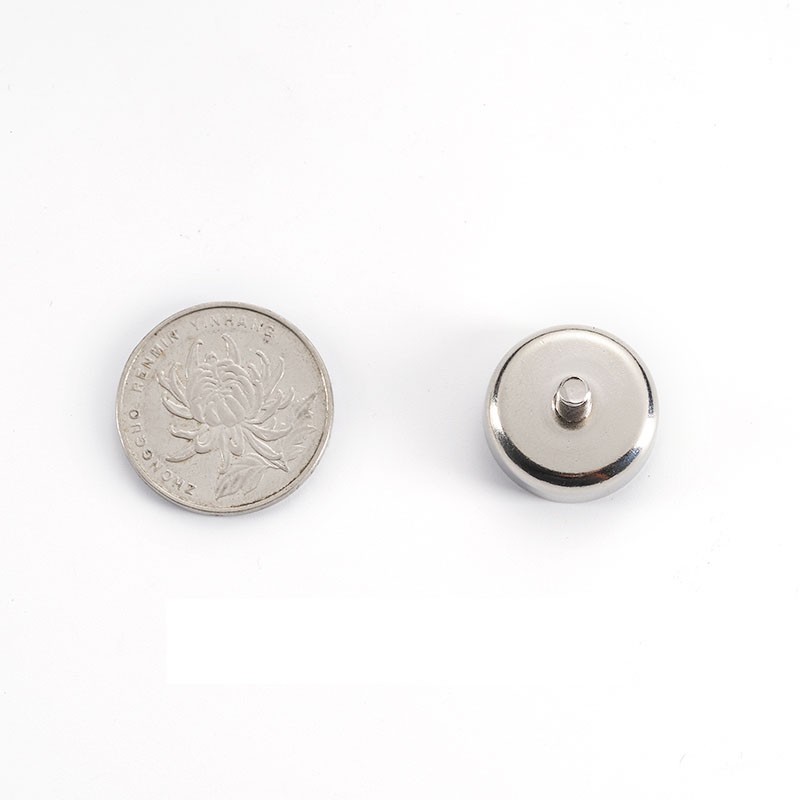

Pot magnet with threaded stem, ø = 20 mm, total height 16 mm, with screw top (M4), magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 9 kgs.
Outer diameter:
This round base neodymium magnet has approx. 9 kg (approx. 19.841 lbs) holding power. The threaded stud is M4. is when the cup directly contacts with the steel. The outer diameter of the magnet is 20 mm (0.787 "). The total thickness of the assembly is 16 mm (0.63 ").

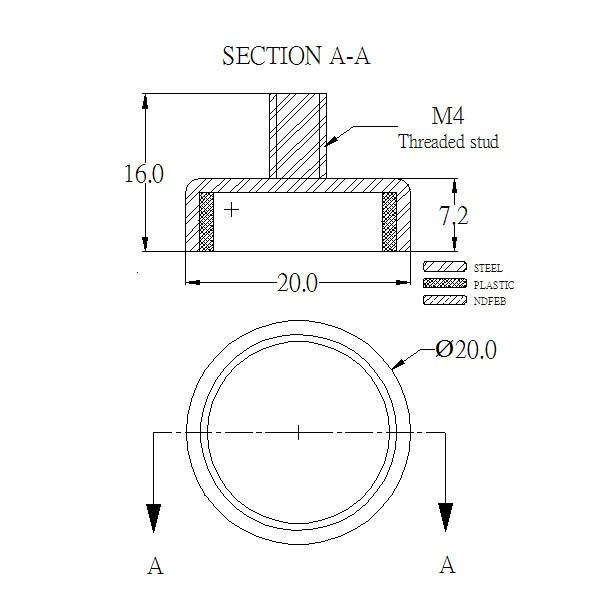

| Item ID | CUP-C20 |
| Material | NdFeB |
| Pot diameter (D) | 20 mm |
| Total height (H2) | 16 mm |
| Pot height (H1) | 7.2 mm |
| Thread M | M4 Male threaded stud |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 9kg ( approx. 88.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 16 g |
| Item ID | CUP-C20 |
| Material | NdFeB |
| Pot diameter (D) | 0.787 " |
| Total height (H2) | 0.63 " |
| Pot height (H1) | 0.283 " |
| Thread M | M4 Male threaded stud |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 19.841 lbs ( approx. 88.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 0.564 oz |
| Item Code | Dia. x Height | Thread | Power kgs |
|---|---|---|---|
| CUP-C10 | 10 x 5 | M3 x 7 | 2.2 |
| CUP-C12 | 12 x 5 | M3 x 7 | 3.2 |
| CUP-C16 | 16 x 5.2 | M4 x 8.8 | 5.5 |
| CUP-C20 | 20 x 7.2 | M4 x 8.8 | 9 |
| CUP-C25 | 25 x 7.7 | M5 x 9.3 | 22 |
| CUP-C32 | 32 x 7.8 | M6 x 10.2 | 34 |
| CUP-C36 | 36 x 7.6 | M6 x 10 | 41 |
| CUP-C42 | 42 x 8.8 | M6 x 9.9 | 68 |
| CUP-C48 | 48 x 10.8 | M8 x 13.2 | 81 |
| CUP-C60 | 60 x 15 | M8 x 16.5 | 113 |
| CUP-C75 | 75 x 17.8 | M10 x 17.2 | 164 |
| Item Code | Dia. x Height | Thread | Power kgs |
