Pot magnet with eyelet hook, ø = 20 mm, magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 9 kgs.
Outer diameter:

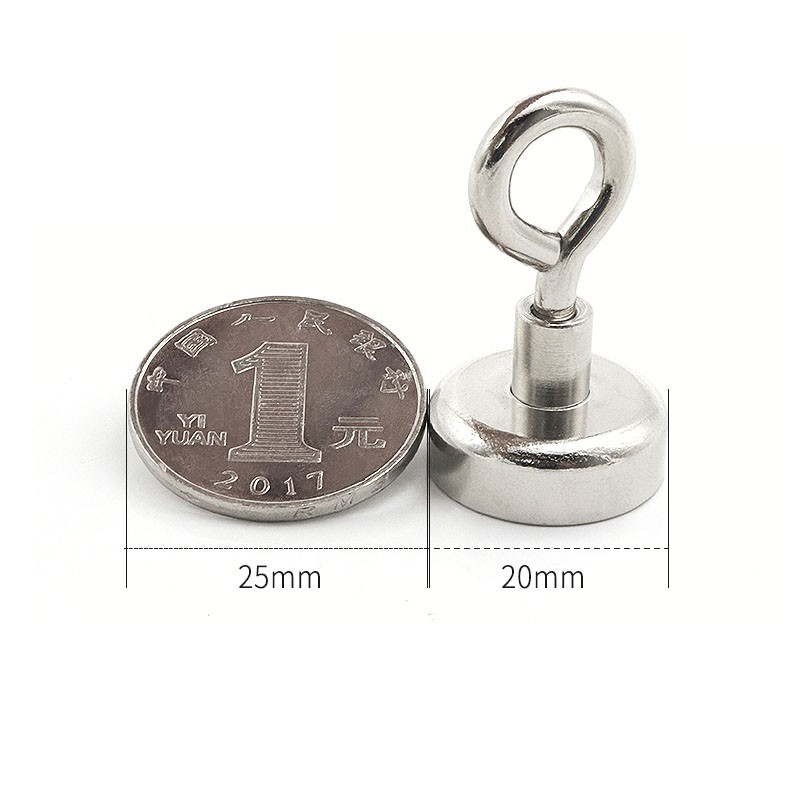

These magnetic cup magnets hook (diameter 20 mm × height 32 mm ) have a threaded shaft and an attached eye bolt. They have a very strong rare earth magnet set in a mild steel cup for extra protection against chipping or cracking. Due to the protective cover on these magnets, the magnetic force is concentrated on one side only. The threaded eye bolt can be removed with M4 thread.
The holding power of 9 kg (approx. 19.841 lbs) is under the direct contact with the steel.
The applications of this cup magnet include magnetic holding, lifting, antenna Mounting, positioning, retrieving, lake or river magnet fishing.

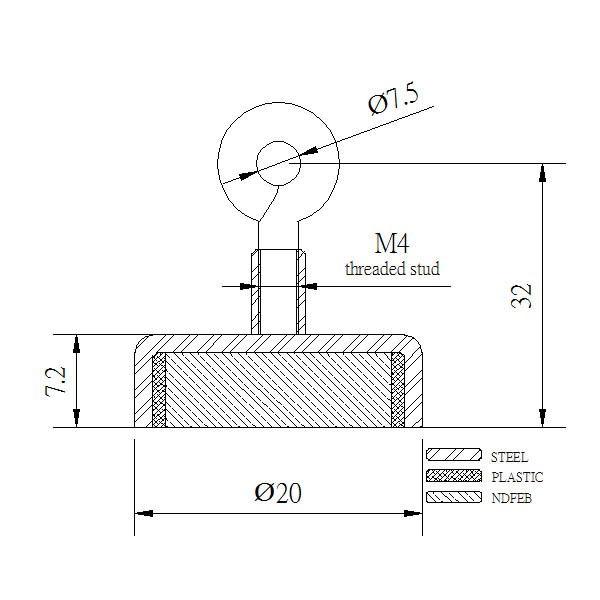

| Item ID | CUP-F20 |
| Material | NdFeB |
| Pot diameter (D) | 20 mm |
| Distance to the center of the hook (H2) | 32 mm |
| Eyelet inside diameter (d) | 7.5 mm |
| Pot height (H1) | 7.2 mm |
| Thread M | M4 threaded eye hook |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 9kg ( approx. 88.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 21 g |
| Item ID | CUP-F20 |
| Material | NdFeB |
| Pot diameter (D) | 0.787 " |
| Distance to the center of the hook (H2) | 1.26 " |
| Eyelet inside diameter (d) | 0.295 " |
| Pot height (H1) | 0.283 " |
| Thread M | M4 Threaded eye hook |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 19.841 lbs ( approx. 88.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 0.741 oz |
| Item Code | Pot dia. | Pot height (H1) | Distance to the center of the hook (H2) | Eyelet inside diameter (d) | Power kgs |
|---|---|---|---|---|---|
| CUP-F10 | 10 | 5.2 | 30 | 7.5 | 5.5 |
| CUP-F20 | 20 | 7.2 | 32 | 7.5 | 9 |
| CUP-F25 | 25 | 7.7 | 32 | 8.5 | 22 |
| CUP-F32 | 32 | 7.8 | 36 | 10 | 34 |
| CUP-F36 | 36 | 7.6 | 36 | 10 | 41 |
| CUP-F42 | 42 | 8.8 | 37 | 10 | 68 |
| CUP-F48 | 48 | 10.8 | 45 | 11 | 81 |
| CUP-F60 | 60 | 15 | 50 | 11 | 113 |
| Item Code | Pot dia. | Pot height (H1) | Distance to the center of the hook (H2) | Eyelet inside diameter (d) | Power kgs |
