Pot magnet with eyelet hook, ø = 25 mm, magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 22 kgs.
Outer diameter:

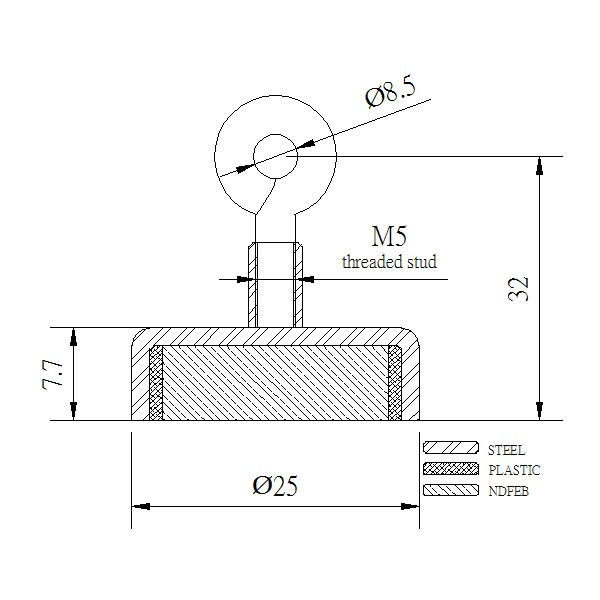

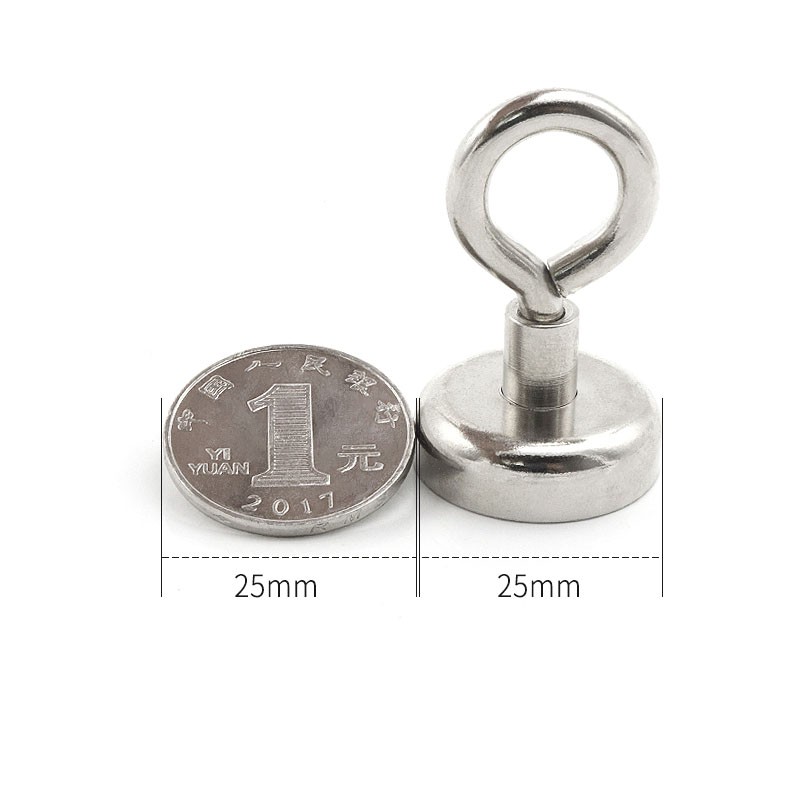

This neodymium magnet with removable eye bolt measures 25 mm (diameter) x 32 mm (height). The threaded shaft opening is 8 mm (M). It has a pull force of 22 kg (approx. 48.501 lbs).
You can use this magnet to fish steel items from ponds or lakes. You can also use it to fix the electrical cables or signs to steel surfaces. The eye bolt is connected to the base with thread so you can replace it with your own design.
| Item ID | CUP-F25 |
| Material | NdFeB |
| Pot diameter (D) | 25 mm |
| Distance to the center of the hook (H2) | 32 mm |
| Eyelet inside diameter (d) | 8.5 mm |
| Pot height (H1) | 7.7 mm |
| Thread M | M5 threaded eye hook |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 22kg ( approx. 215.6 N） |
| Max. working temperature | 80°C |
| Net Weight | 33 g |
| Item ID | CUP-F25 |
| Material | NdFeB |
| Pot diameter (D) | 0.984 " |
| Distance to the center of the hook (H2) | 1.26 " |
| Eyelet inside diameter (d) | 0.335 " |
| Pot height (H1) | 0.303 " |
| Thread M | M5 Threaded eye hook |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 48.501 lbs ( approx. 215.6 N） |
| Max. working temperature | 80°C |
| Net Weight | 1.164 oz |
| Item Code | Pot dia. | Pot height (H1) | Distance to the center of the hook (H2) | Eyelet inside diameter (d) | Power kgs |
|---|---|---|---|---|---|
| CUP-F10 | 10 | 5.2 | 30 | 7.5 | 5.5 |
| CUP-F20 | 20 | 7.2 | 32 | 7.5 | 9 |
| CUP-F25 | 25 | 7.7 | 32 | 8.5 | 22 |
| CUP-F32 | 32 | 7.8 | 36 | 10 | 34 |
| CUP-F36 | 36 | 7.6 | 36 | 10 | 41 |
| CUP-F42 | 42 | 8.8 | 37 | 10 | 68 |
| CUP-F48 | 48 | 10.8 | 45 | 11 | 81 |
| CUP-F60 | 60 | 15 | 50 | 11 | 113 |
| Item Code | Pot dia. | Pot height (H1) | Distance to the center of the hook (H2) | Eyelet inside diameter (d) | Power kgs |
