Pot magnet with hook, ø = 42 mm, magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 68 kgs.
Outer diameter:

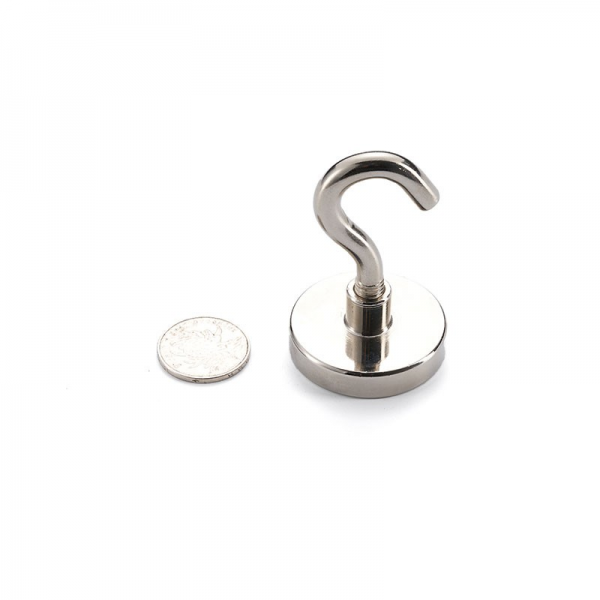

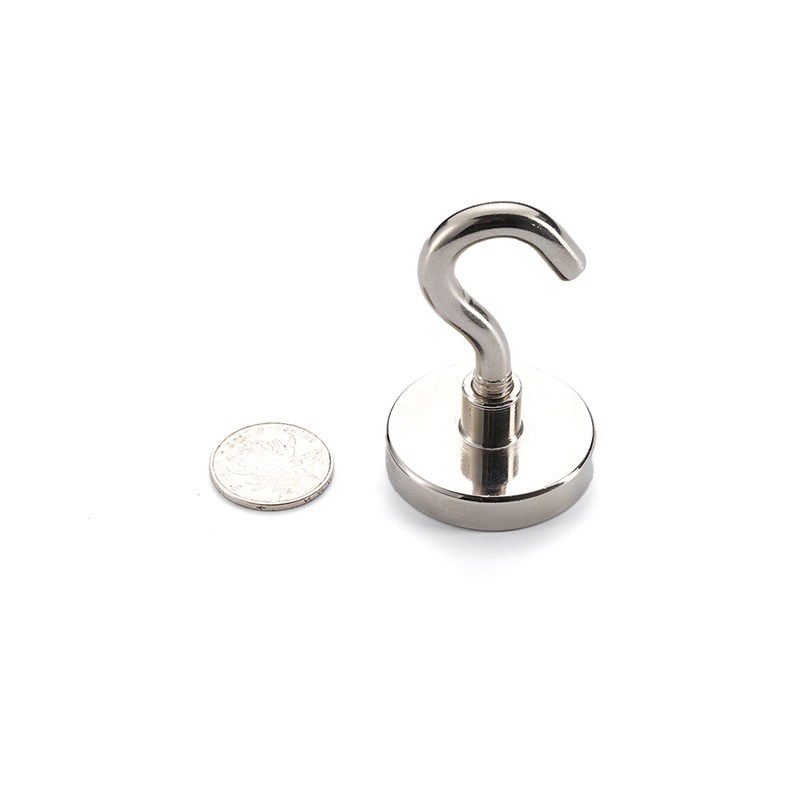

This handy and useful magnetic hook has a strong neodymium magnet embedded inside a Nickel coated steel cup to offer the maximum gripping power. A Nickel coated hook is attached to the magnetic cup through a M6 threaded hole. The steel cup offers protection for the magnet and concentrates the magnetic force on the magnet surface.
The Super Magnets Handi Hook 20 lb. Magnetic Pull Hook makes it easy to hang items from metal surfaces. The hook is designed to hold up to 68 kg (approx. 149.913 lbs).

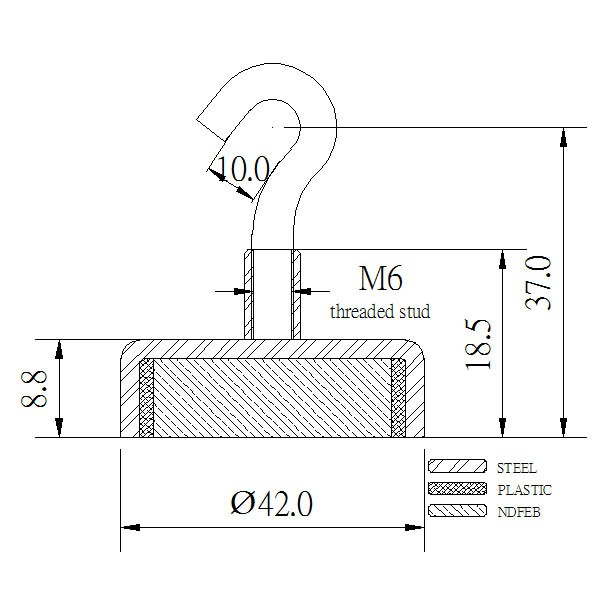

| Item ID | CUP-E42 |
| Material | NdFeB |
| Pot diameter (D) | 42 mm |
| Distance to the center of the hook (H2) | 37 mm |
| Hook opening width (a) | 10 mm |
| Pot height (H1) | 8.8 mm |
| Thread M | M6 threaded open hook |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 68kg ( approx. 666.4 N） |
| Max. working temperature | 80°C |
| Net Weight | 93 g |
| Item ID | CUP-E42 |
| Material | NdFeB |
| Pot diameter (D) | 1.654 " |
| Distance to the center of the hook (H2) | 1.457 " |
| Hook opening width (a) | 0.394 " |
| Pot height (H1) | 0.346 " |
| Thread M | M6 Threaded open hook |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 149.913 lbs ( approx. 666.4 N） |
| Max. working temperature | 80°C |
| Net Weight | 3.28 oz |
| Item Code | Pot dia. | Pot height (H1) | Distance to the center of the hook (H2) | Power kgs |
|---|---|---|---|---|
| CUP-E10 | 10 | 5 | 27 | 2.2 |
| CUP-E12 | 12 | 5 | 27 | 3.2 |
| CUP-E16 | 16 | 5.2 | 30 | 5.5 |
| CUP-E20 | 20 | 7.2 | 32 | 9 |
| CUP-E25 | 25 | 7.7 | 32 | 22 |
| CUP-E32 | 32 | 7.8 | 36 | 34 |
| CUP-E36 | 36 | 7.6 | 36 | 41 |
| CUP-E42 | 42 | 8.8 | 37 | 68 |
| CUP-E48 | 48 | 10.8 | 45 | 81 |
| CUP-E60 | 60 | 15 | 50 | 113 |
| CUP-E75 | 75 | 17.8 | 62 | 164 |
| Item Code | Pot dia. | Pot height (H1) | Distance to the center of the hook (H2) | Power kgs |
