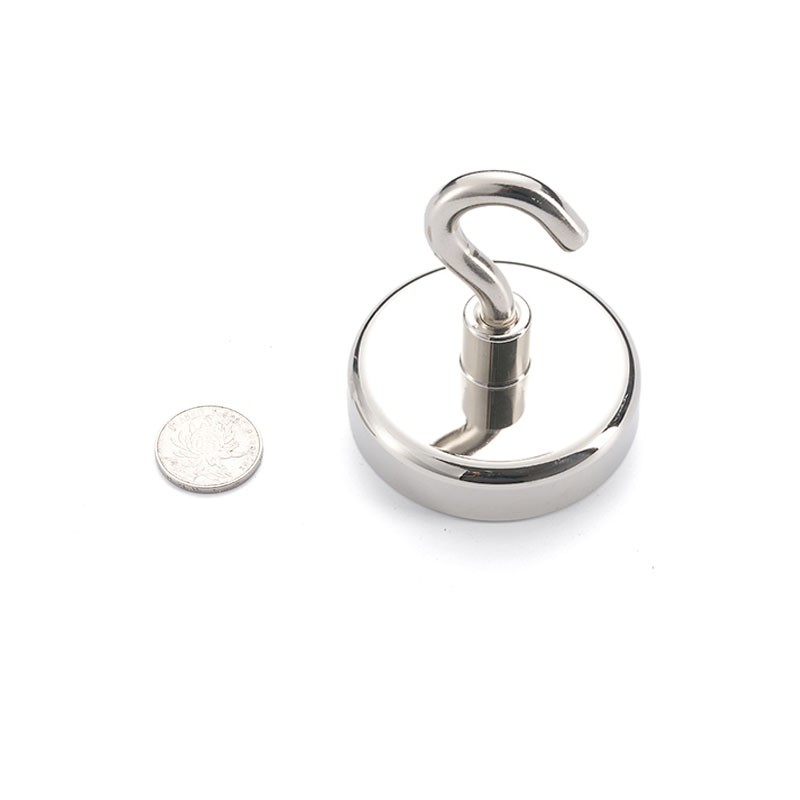

Pot magnet with hook, ø = 75 mm, magnet made of neodymium, pot made of steel, nickel-plated, strength approx. 164 kgs.
Outer diameter:

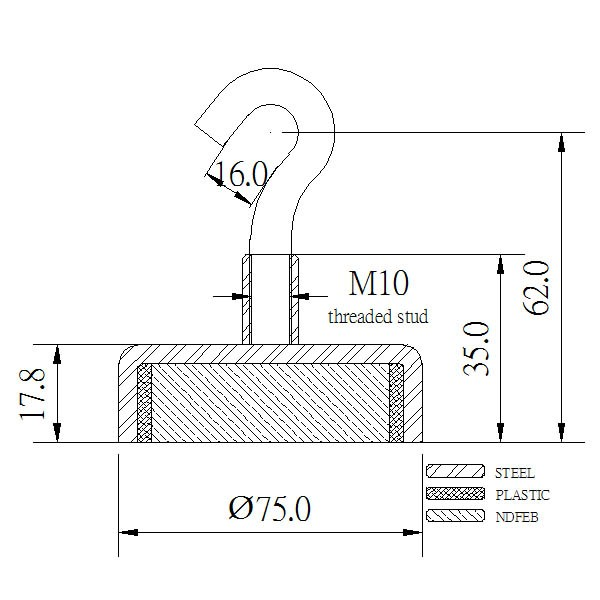

Cup magnet (diameter 75 mm × height 62 mm ) with threaded stem and female thread M10. The magnet is embedded in a steel pot in order to increase the adhesive force. The indicated adhesive force is referring to ceiling suspension (adhesive force perpendicular to the surface).
With these strong magnetic hooks, you can conveniently attach office and kitchen utensils, clothing, etc. to ferromagnetic surfaces.
| Item ID | CUP-E75 |
| Material | NdFeB |
| Pot diameter (D) | 75 mm |
| Distance to the center of the hook (H2) | 62 mm |
| Hook opening width (a) | 16 mm |
| Pot height (H1) | 17.8 mm |
| Thread M | M10 threaded open hook |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 164kg ( approx. 1607.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 555 g |
| Item ID | CUP-E75 |
| Material | NdFeB |
| Pot diameter (D) | 2.953 " |
| Distance to the center of the hook (H2) | 2.441 " |
| Hook opening width (a) | 0.63 " |
| Pot height (H1) | 0.701 " |
| Thread M | M10 Threaded open hook |
| Coating | Nickel-plated (Ni) |
| Steel | Q235 (China) |
| Pull Force | approx. 361.554 lbs ( approx. 1607.2 N） |
| Max. working temperature | 80°C |
| Net Weight | 19.577 oz |
| Item Code | Pot dia. | Pot height (H1) | Distance to the center of the hook (H2) | Power kgs |
|---|---|---|---|---|
| CUP-E10 | 10 | 5 | 27 | 2.2 |
| CUP-E12 | 12 | 5 | 27 | 3.2 |
| CUP-E16 | 16 | 5.2 | 30 | 5.5 |
| CUP-E20 | 20 | 7.2 | 32 | 9 |
| CUP-E25 | 25 | 7.7 | 32 | 22 |
| CUP-E32 | 32 | 7.8 | 36 | 34 |
| CUP-E36 | 36 | 7.6 | 36 | 41 |
| CUP-E42 | 42 | 8.8 | 37 | 68 |
| CUP-E48 | 48 | 10.8 | 45 | 81 |
| CUP-E60 | 60 | 15 | 50 | 113 |
| CUP-E75 | 75 | 17.8 | 62 | 164 |
| Item Code | Pot dia. | Pot height (H1) | Distance to the center of the hook (H2) | Power kgs |
